BK 1414 RS L271 INA

Net price:

4.997 €/pcs

Main warehouse:
On stock
8 pcs

Product number:

BK 1414 RS L271

Brand:

INA

Product name:

bearing

Sizes:

14X20X14

Replacements:
BK 1414-RS

Inquiry Subscribe

Product details from catalogue

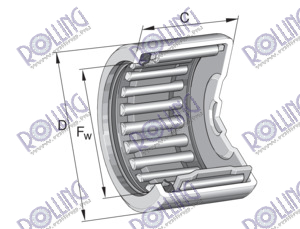

Drawings:

BK1414-RS-L271 INA


Fw Under roller diameter 14 mm
D Outside diameter 20 mm
C Width, outer ring 14 mm
Cr Basic dynamic load rating, radial 7.100 N
C0r Basic static load rating, radial 8.500 N
Cur Fatigue load limit, radial 1.030 N
nG Limiting speed 10.500 1/min
nG Grease Limiting speed for grease lubrication 10.500 1/min
≈m Weight 12,915 g
rmin Minimum chamfer dimension 0,8 mm
Ct min Minimum width to base of drawn cup with closed end 11,3 mm
Tmin Operating temperature min. -20 °C
Tmax Operating temperature max. 100 °C
Coating Without
Sealing Contact seal on one sides RS
