EX 211 G2 SNR

Net price:

31.016 €/pcs

Main warehouse:
Out of stock
0 pcs

Product number:

EX 211 G2

Brand:

SNR

Product name:

bearing

Sizes:

55X100X71,3

Catalog:

Catalog #1: http://www.rolling.hu/pdf/SNR/PDFTechnicalSheetEX211G2.pdf

Replacements:
GE55-XL-KRR-B GE55-KRR-B 1055-55 DECG UEL 211 D1 W3 36211 722003 NEW HOLLAND

Inquiry Subscribe

Product details from catalogue

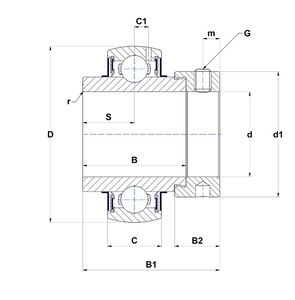

Drawings:

Industry Solutions / Bearing Units / Insert Bearings

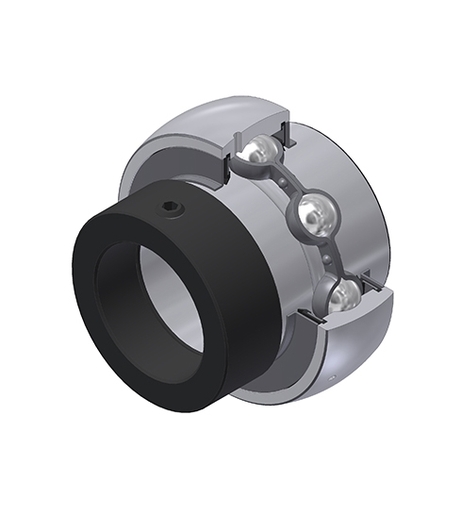

EX211G2 - SNR


Product Definition
B - Width of Inner Ring 55,4 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 71,3 mm
B2 - Width of eccent. Lock. collar/nut+washer of adapter sleeve 20,7 mm
C - Width of Outer Ring 25 mm
C1 - Distance center of OR to center of lubrication zone 7,2 mm
d - Shaft diameter 55 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 74,5 mm
D - Outer diameter of OR 100 mm
G - Set screw size M10x1,25
m - Distance to set screw 8 mm
r - Radius Inner Ring 1.5
S - Dist. cent. of raceway to face IR on side opp. lock. device 27,7 mm
SW - Wrench size 5 mm
Brand SNR
