22315-E1A-XL-M FAG

Net price:

246.371 €/pcs

Main warehouse:
On stock
2 pcs

Product number:

22315-E1A-XL-M

Brand:

FAG

Product name:

bearing

Suffixes:

E1 - növelt teherbírás

M - réz tömörkosár /bronz/


Replacements:
22315-E1A-M

Interchange catalog:
22315AEX NACHI 22315AEXW33 NACHI 22315CAME4 NSK 22315E2 NACHI 22315E2W33 NACHI 22315EMW33 RHP 22315UAL1 NTN 3615 GPZ

Inquiry Subscribe

Product details from catalogue

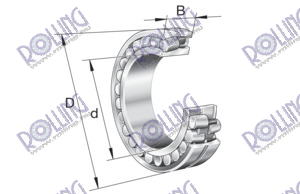

Drawings:

22315-E1A-XL-M FAG

Housing selection guide


d Bore diameter 75 mm
D Outside diameter 160 mm
B Width 55 mm
Cr Basic dynamic load rating, radial 445.000 N
C0r Basic static load rating, radial 450.000 N
Cur Fatigue load limit, radial 41.500 N
nG Limiting speed 4.500 1/min
nϑr Reference speed 3.550 1/min
≈m Weight 5,12 kg
da min Minimum diameter shaft shoulder 87 mm
Da max Maximum diameter of housing shoulder 148 mm
ra max Maximum recess radius 2,1 mm
rmin Minimum chamfer dimension 2,1 mm
D1 Bore diameter outer ring 136,3 mm
d2 Raceway diameter of the inner ring 92,4 mm
ds Diameter lubrication hole 4,8 mm
ns Width of lubricating groove 9,5 mm
Tmin Operating temperature min. -30 °C
Tmax Operating temperature max. 200 °C
e Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y 0,34
Y1 Dynamic axial load factor 1,99
Y2 Dynamic axial load factor 2,96
Y0 Static axial load factor 1,94
Design without central rip E1A
Bore type Cylindrical Z
Cage Solid brass cage M
Radial internal clearance Group N (CN) CN
Relubrication feature Standard
