F507-A-L FAG

Net price:

79.444 €/pcs

Main warehouse:
On stock
3 pcs

Product number:

F507-A-L

Brand:

FAG

Product name:

housing


Interchange catalog:
722507DA SKF FNL507A SKF

Inquiry Subscribe

Product details from catalogue

Drawings:

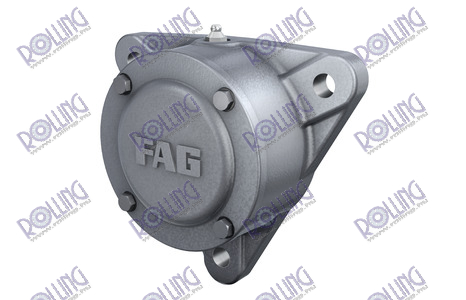

F507-A-L FAG

Flanged housing for various bearing types, with conical bore and clamping sleeve, closed on one side


d1 Shaft diameter 30 mm
a Flange width 145 mm
h1 height flange 130 mm
g2 total width with cover 57 mm
≈m Weight 2 kg
c thickness of flange 12 mm
D outside diameter bearing 72 mm
g4 distance flange to bearing seat 17 mm
h distance shaft axis 48,5 mm
m pich circle diameter fixing holes 130 mm
s size of fixing screws M12
