ENB 7212-C-T-P4S-UL FAG
Net price:
Main warehouse:
271.132 €/pcs
Main warehouse:
On stock
2 pcs
Product number:
B 7212-C-T-P4S-UL
Brand:
Product name:
bearing
Sizes:
60X110X22
Suffixes:
P4S - méret és alakpontosság:P4, futáspontosság:P2
UL - Univerzálisan párosítható, könnyû elõfeszítés
C.T.P4S.UL - C=15 fokos hatásszög, T= textilbakelit tömör ablakos kosár, P4S= tûrésosztály, UL= univerzális kivitel párosított beépítéshez, a csapágypárnak "O"- és "X"-elrendezésben enyhe elõfeszítése van
Replacements:
7212 CDGA/P4AInquiry Subscribe
Product details from catalogue

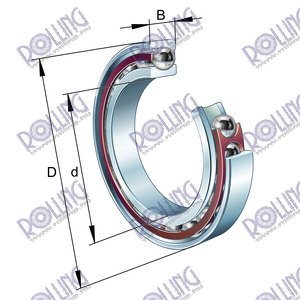

Drawings:
B7212-C-T-P4S-UL FAG
| d | Bore diameter | 60 mm |
| D | Outside diameter | 110 mm |
| B | Width | 22 mm |
| Cr | Basic dynamic load rating, radial | 56.000 N |
| C0r | Basic static load rating, radial | 31.000 N |
| Cur | Fatigue load limit, radial | 3.300 N |
| nG Grease | Limiting speed for grease lubrication | 13.000 1/min |
| nG Oil | Limiting speed for oil lubrication | 20.000 1/min |
| ≈m | Weight | 0,779 kg |
| da | Diameter shaft shoulder | 69,5 mm |
| da | Diameter shaft shoulder clearance | h12 |
| Da | Shoulder diameter outer ring | 101,5 mm |
| Da | Shoulder diameter outer ring clearance | H12 |
| ra max | Maximum recess radius | 1,5 mm |
| ra1 max | Maximum recess radius | 0,6 mm |
| Etk min | Minimum diameter injection pitch | 77 mm |
| Etk max | Maximum diameter injection pitch | 81,9 mm |
| Etk1 min | Minimum diameter injection pitch | 77 mm |
| Etk1 max | Maximum diameter injection pitch | 81,9 mm |
| a | Distance between the apexes of the pressure cones | 22,5 mm |
| rmin | Minimum chamfer dimension | 1,5 mm |
| r1 min | Minimum chamfer dimension | 1,5 mm |
| α | Contact angle | 15 ° |
| Tmin | Operating temperature min. | -30 °C |
| Tmax | Operating temperature max. | 100 °C |
| FV L | Preload force light | 312 N |
| FV M | Preload force medium | 996 N |
| FV H | Preload force heavy | 1.982 N |
| KaE L | Lift-off force light | 968 N |
| KaE M | Lift-off force medium | 3.352 N |
| KaE H | Lift-off force heavy | 7.140 N |
| ca L | Axial rigidity light | 70,9 N/µm |
| ca M | Axial rigidity medium | 121 N/µm |
| ca H | Axial rigidity heavy | 172 N/µm |
| Contact angle | Contact angle 15° | C |
| Lubricant | Without | |
| Sealing | Without | |
| Outer shape | Standard | |
| Cage | Laminated fabric cage | T |
| Tolerance class | tolerance class P4S, FAG standard better than P4 to DIN 620 | P4S |
| Arrangement bearing set | Single bearing | U |
| Preload | preload light | L |
